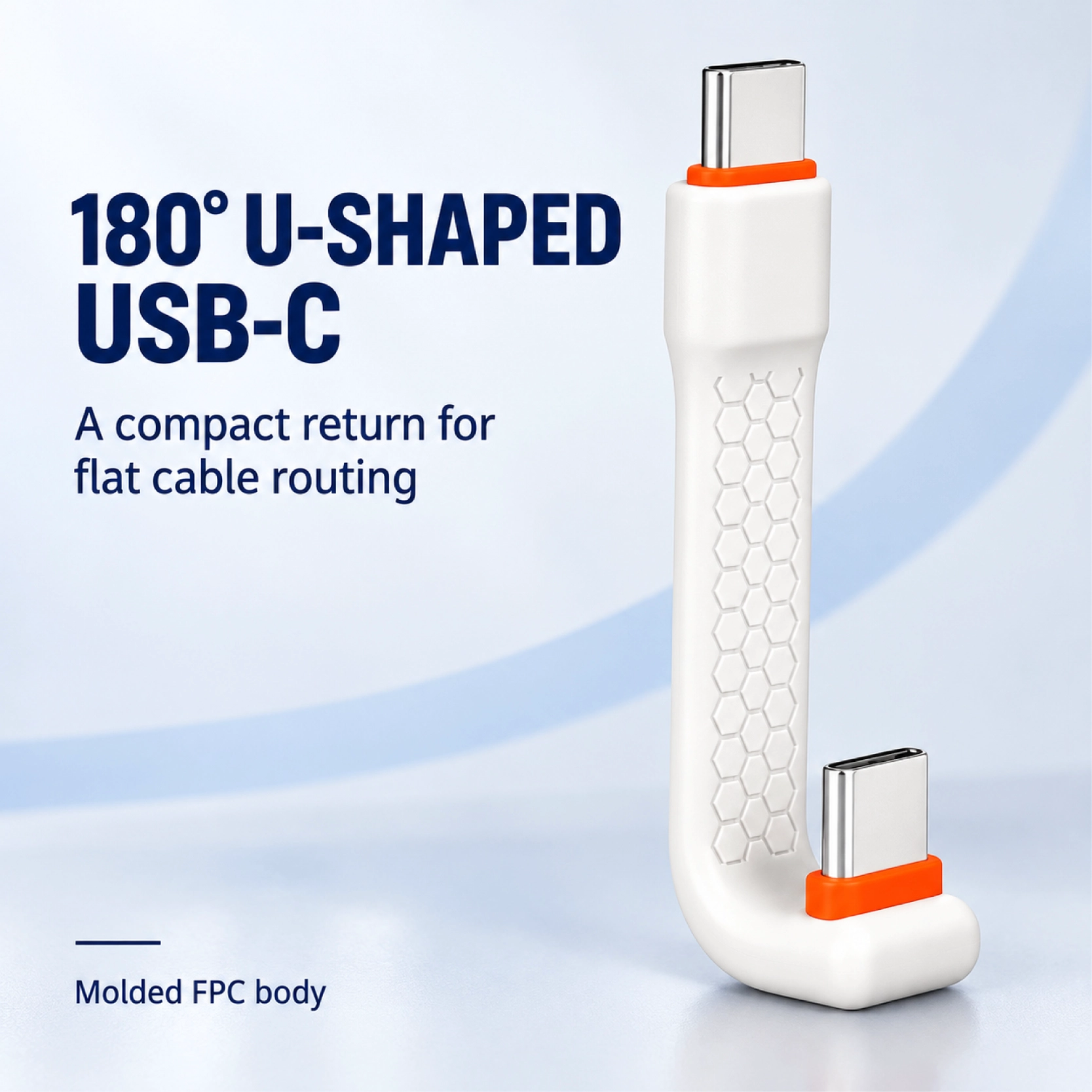

Goochain is a custom USB-C FPC cable manufacturer based in Dongguan, China. We produce 180-degree U-shaped USB-C FPC cable assemblies that turn the cable route back along a device surface. The return arrangement guides the FPC around an equipment edge and behind or alongside the device where a wall, bracket or protective housing limits outward cable space.

The return gap, connector body and FPC exit direction are developed around the actual port position and surrounding case. Goochain can review the U-shaped end, cable route and opposite connector as one assembly, then supply samples for installation and electrical evaluation before OEM production.

Product Specifications

Route the Connection Around an Equipment Edge

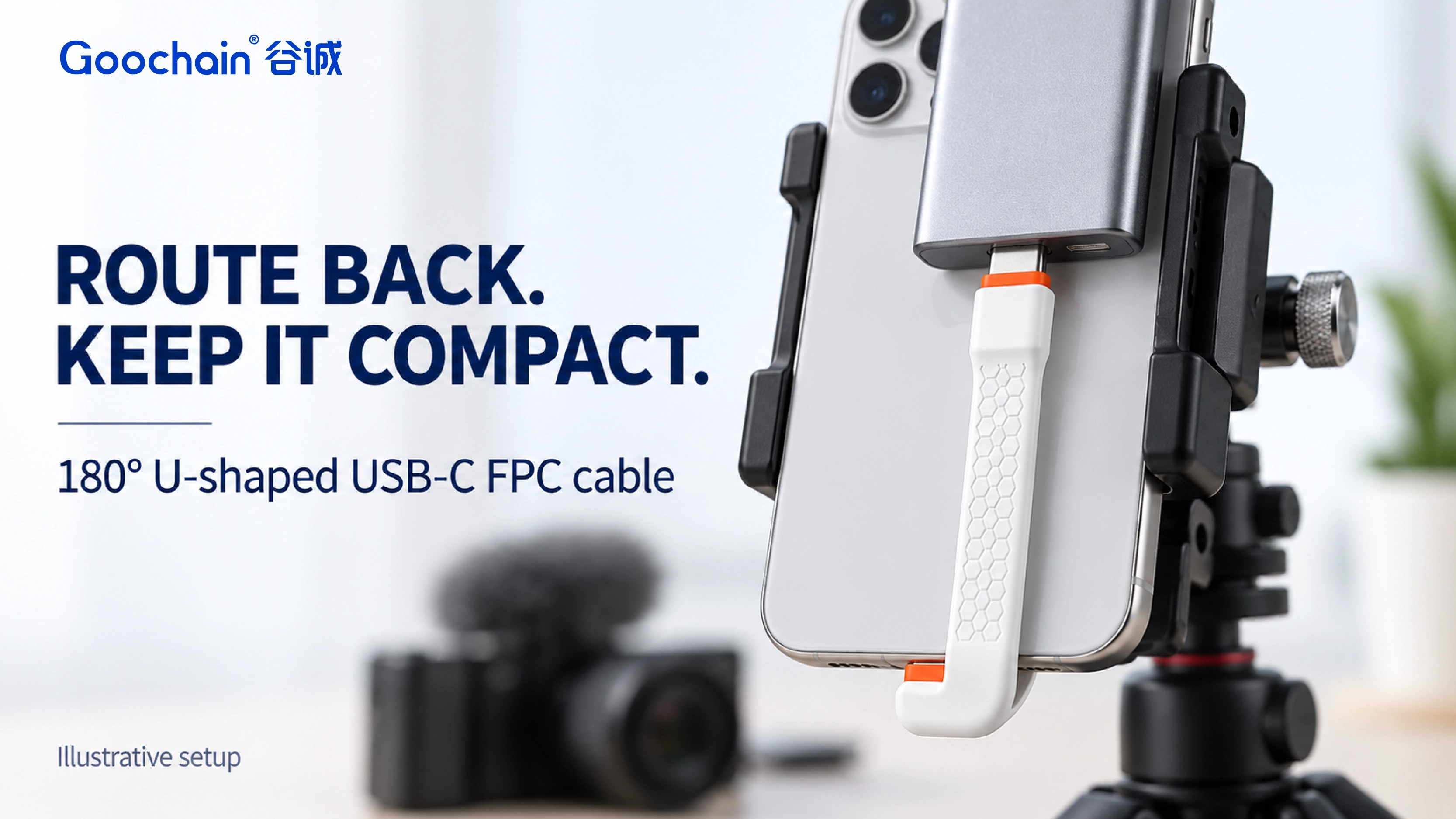

A U-shaped connector can place the cable path behind or alongside a device instead of letting it project outward. This arrangement can suit mounted controllers, compact equipment and devices close to a wall or support bracket, provided the return geometry matches the installation.

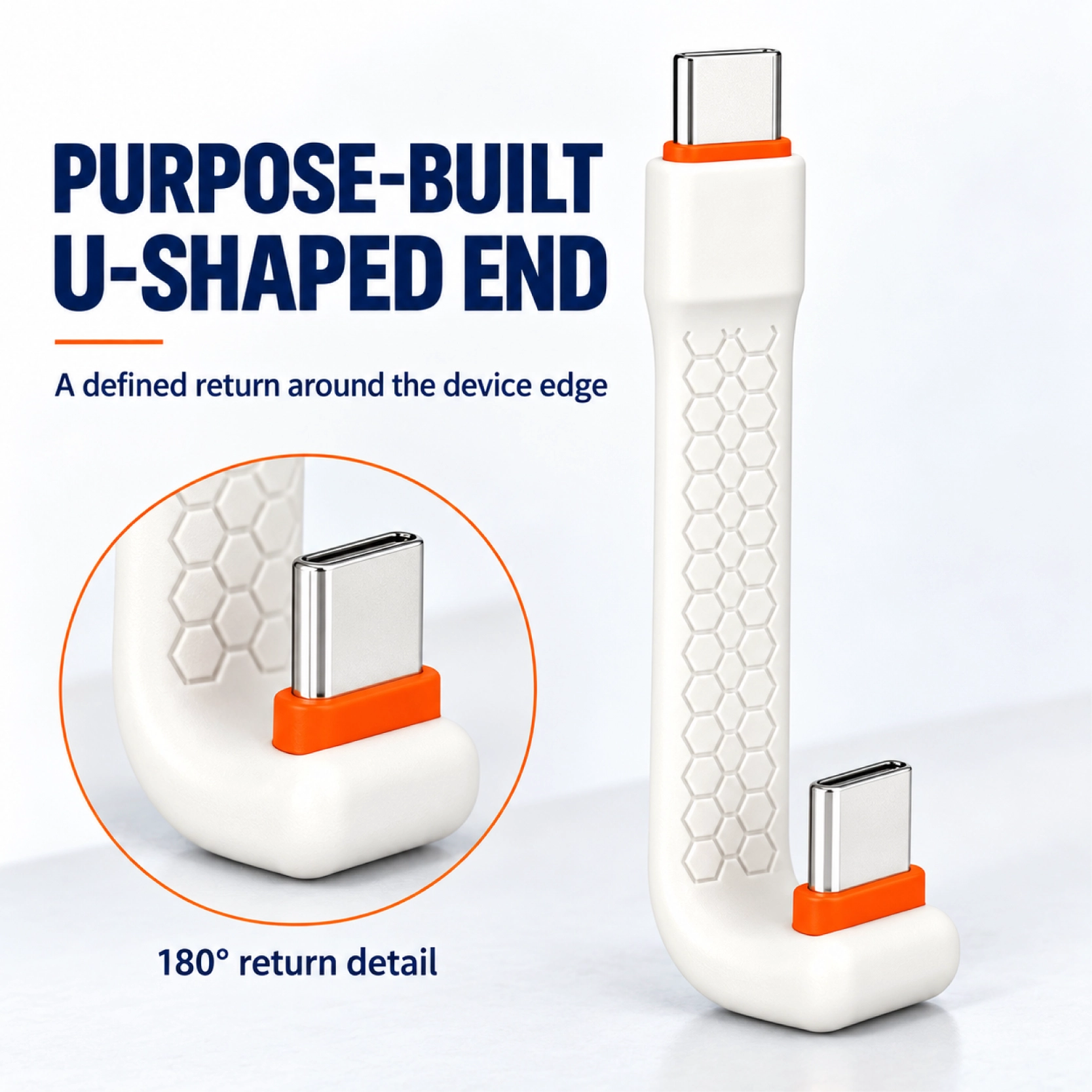

The important dimension is the space inside the return. It must clear the case edge while allowing the USB-C plug to seat fully. A cable may have the correct connector interface and still fail to fit if its return gap or housing transition conflicts with the device body.

If the layout requires a separate 90-degree plug at each end rather than a return around the device edge, consider the Dual Right Angle USB-C FPC Cable. Select the connector arrangement from the port positions and available exit space.

Review the Case, Recessed Port and Return Gap Together

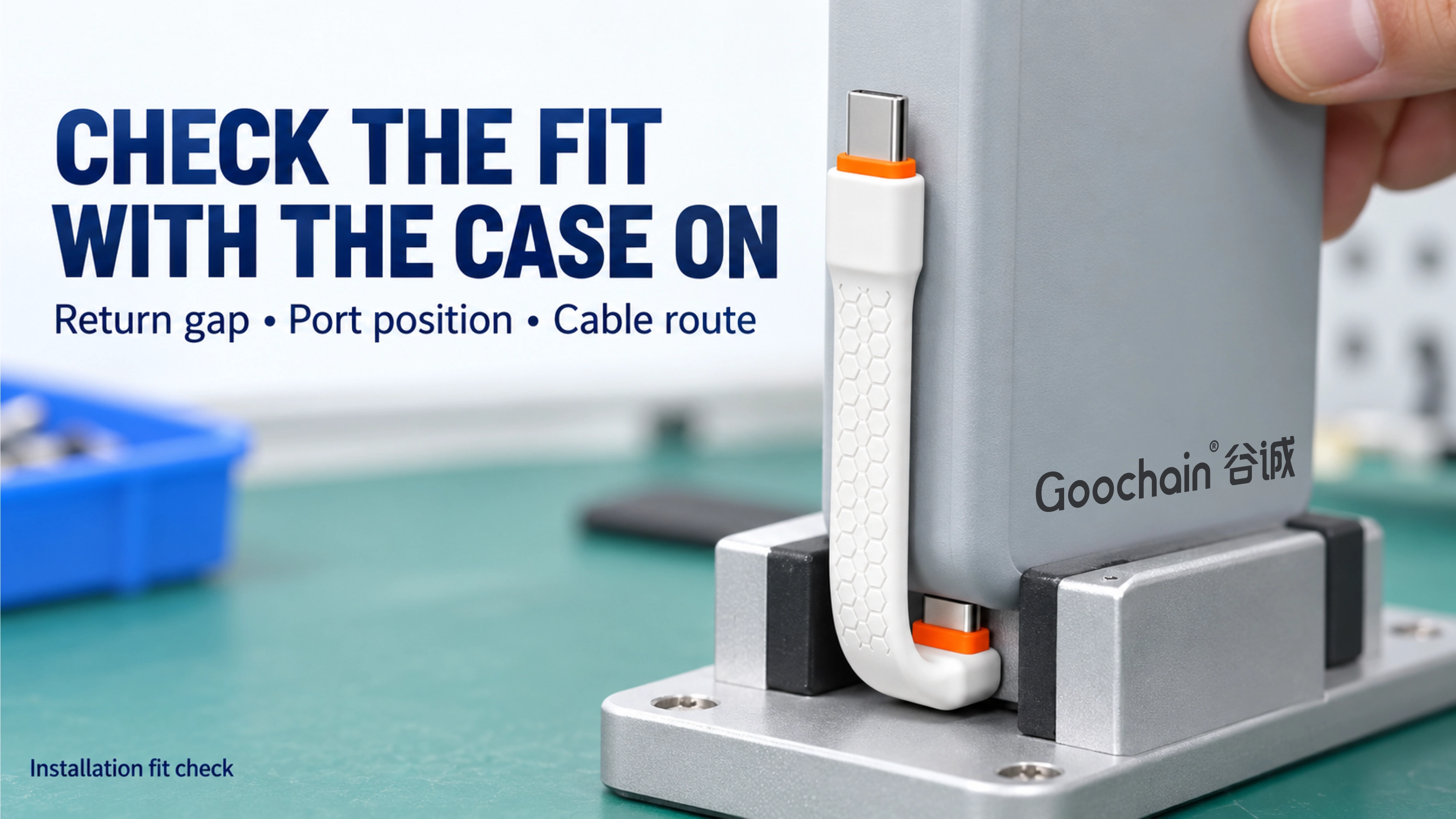

A protective cover, recessed port or raised housing lip changes the available clearance. Include every cover that remains fitted during use in the mechanical review. A side view should show the port location, device edge, case thickness and the direction in which the cable must return.

Also check the space between the finished cable and any wall, mounting plate or bracket. The FPC should leave the connector on the intended side without a forced fold at the transition. The installation should provide enough access to seat and remove the connector without pulling on the ribbon.

Specify the Opposite Connector and FPC Route

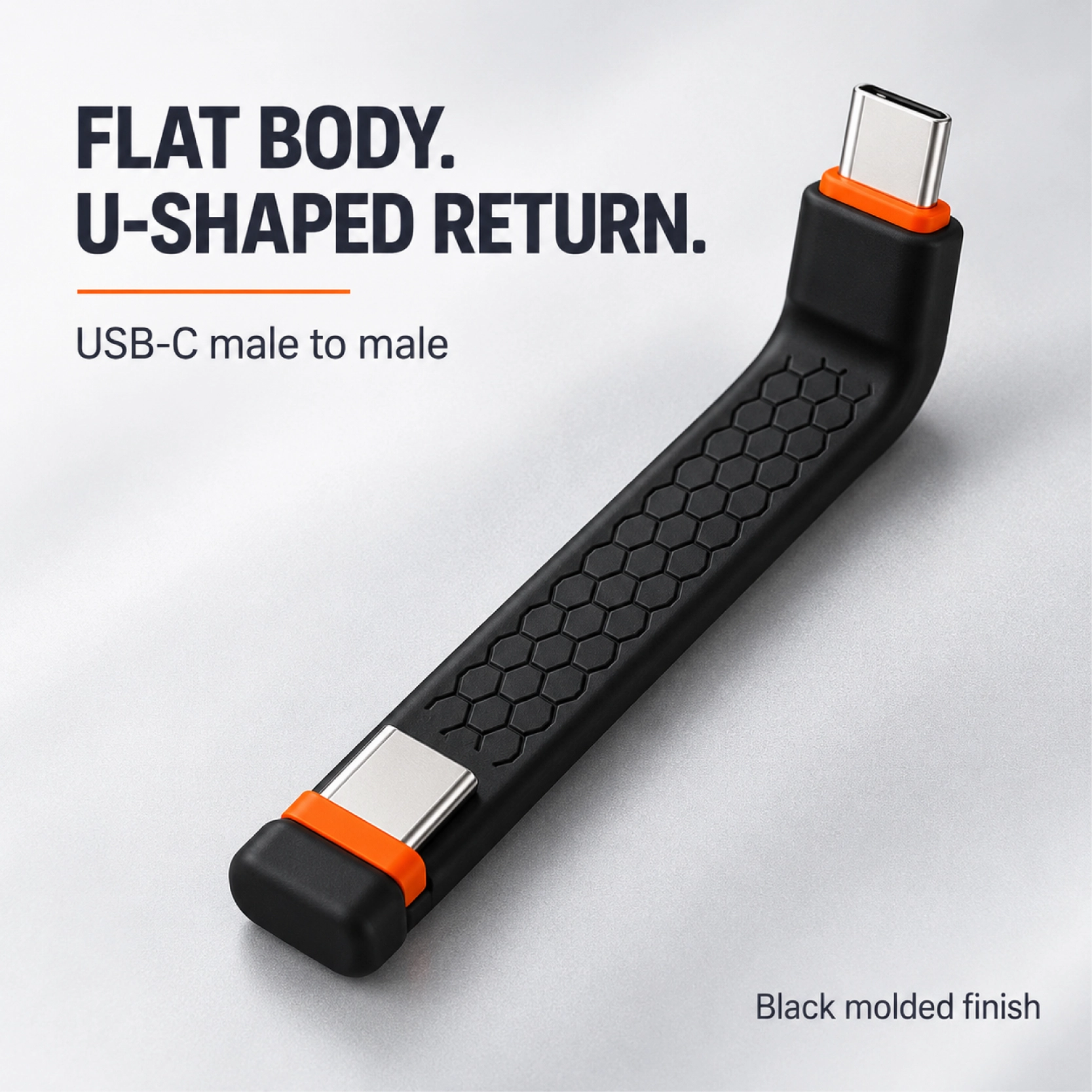

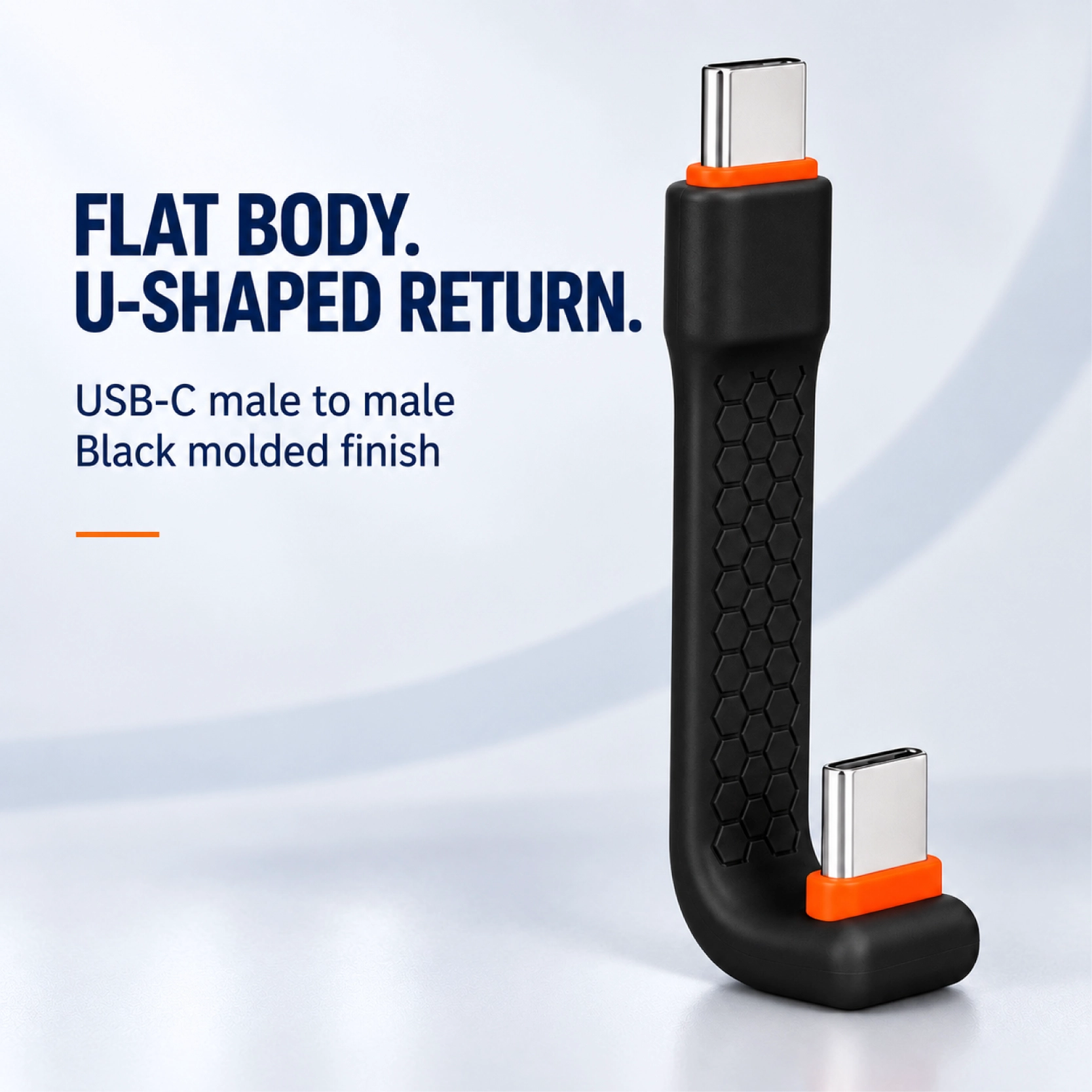

The U-shaped end is only one part of the connection. Specify the opposite connector gender, its orientation and the route to the next connection point. Goochain makes different end combinations, so a male-to-male connection and a male-to-female extension need separate configuration definitions.

Provide the usable routing area and required length along the actual path, including any obstacles. The finished FPC outline and end positions should fit that route without relying on a sharp fold to create the return.

Choose the Body Construction and Electrical Functions

A custom molded body can be developed around the FPC and connector arrangement where required. Its finished outer dimensions and transition into the ribbon must be checked against the case clearance. Review the molded design together with the return geometry, rather than adding its thickness after the installation space has been fixed.

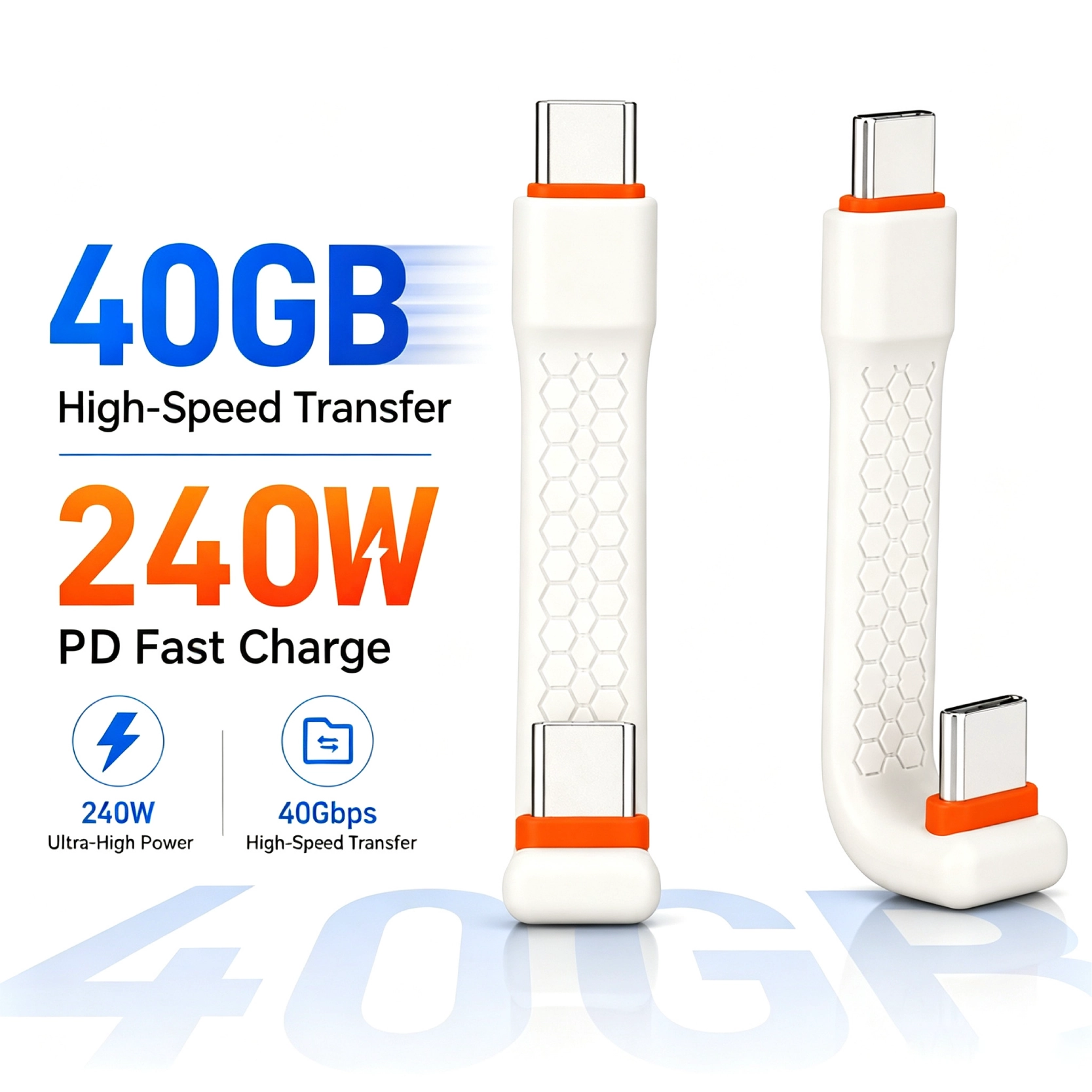

The 180-degree shape defines the mechanical route. Data rate, charging power and any video function are specified separately for the completed assembly and connected equipment. Identify the host, connected device and required functions during the design review so the samples can be evaluated in the intended connection.

For a broader review of routing, connector layout and required functions, read USB-C FPC Cable Selection for OEM Equipment. Use the installation geometry and electrical requirements together when selecting the assembly.

Custom U-Shaped USB-C Cable Manufacturing

As a U-shaped USB-C cable factory and OEM supplier, Goochain reviews the return geometry, connector integration and FPC route together. Our custom cable work includes molding where required, assembly and electrical inspection. Prototype samples allow the installation and functions to be checked before the production design is released.

Our quality process covers incoming materials, assembly workmanship and finished-product checks. Agree the configuration-specific inspection requirements during sample review, including the mechanical dimensions and electrical functions that matter to the project.

For a quotation, provide front and side views of the USB-C port and device edge, the port recess, any fitted protective case, the desired return direction and the available cable route. Include the opposite connector, required length, electrical functions and expected quantity so the quotation covers the intended assembly.

Frequently Asked Questions

Will a U-shaped USB-C plug fit every device?

No. The return gap, connector housing and port recess determine the fit. A protective case or cover must be included in the dimensional review if it remains fitted during use.

Is this the same as a cable with two 90-degree plugs?

No. This configuration uses a 180-degree return at the specified end to route the cable back around an equipment edge. Two separate 90-degree plugs describe a different connector arrangement.

Can the opposite end be male or female?

Goochain makes different end combinations. Specify the opposite connector gender and orientation when defining the custom assembly; these are selected configurations, not interchangeable ends on one cable.

Can I create the return by sharply folding a straight FPC?

A sharp fold is not a substitute for a designed return. The bend and connector transition need to suit the circuit construction and installation.

Can you supply a custom molded version?

Yes. A molded body can be developed around the FPC and connector arrangement. Its outer dimensions must be checked with the device case, return gap and surrounding installation space.

Does the U-shaped design determine the data rate or charging power?

No. Data, charging power and video functions are defined for the selected assembly and compatible equipment. The connector angle alone does not establish those capabilities.

Send Goochain your U-shaped USB-C cable requirements with the mechanical views and desired functions for engineering review, sampling and an OEM production quotation.
