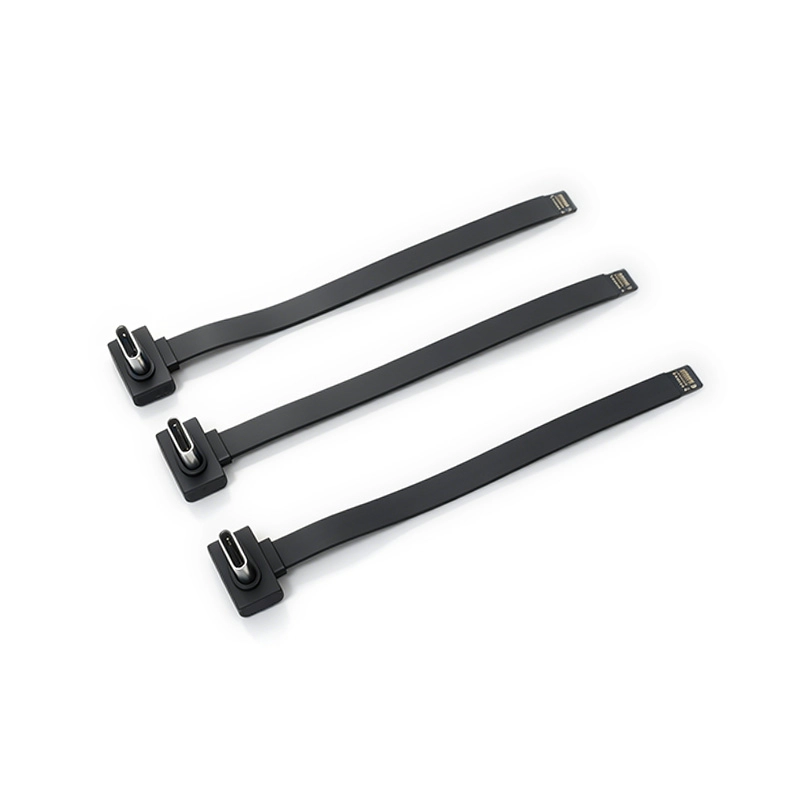

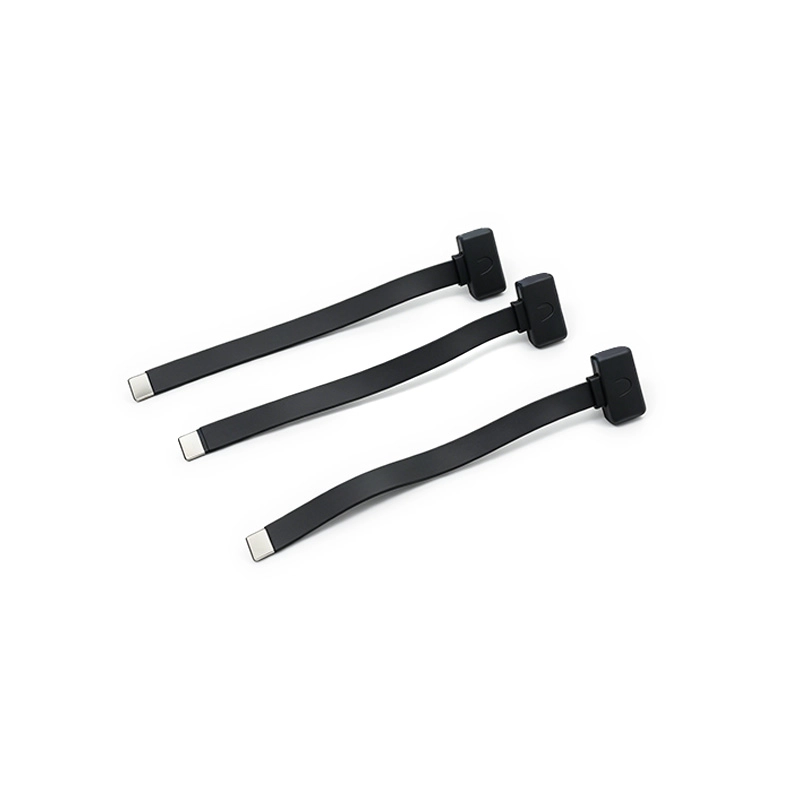

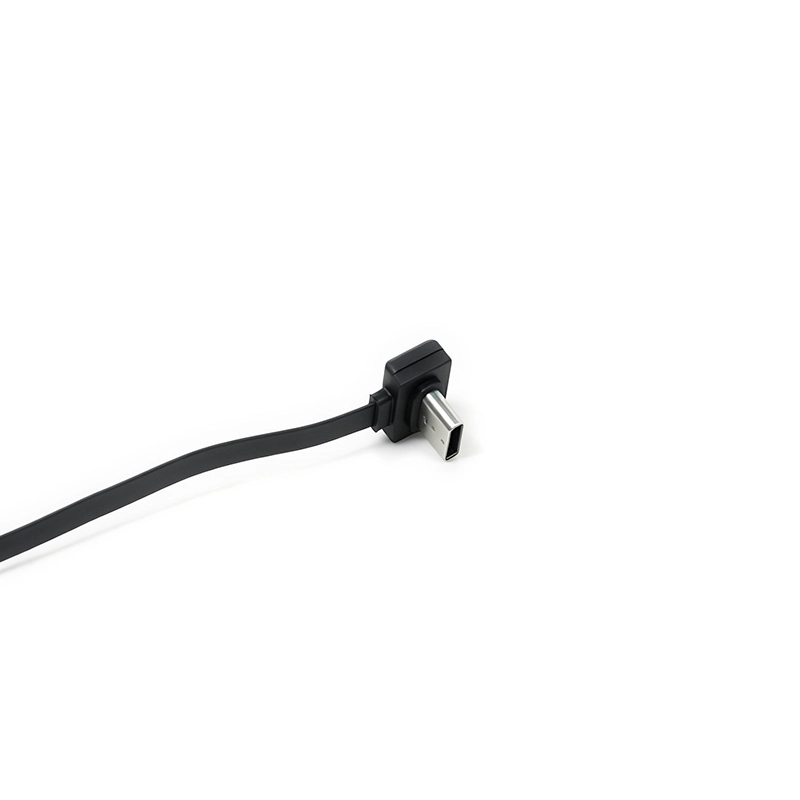

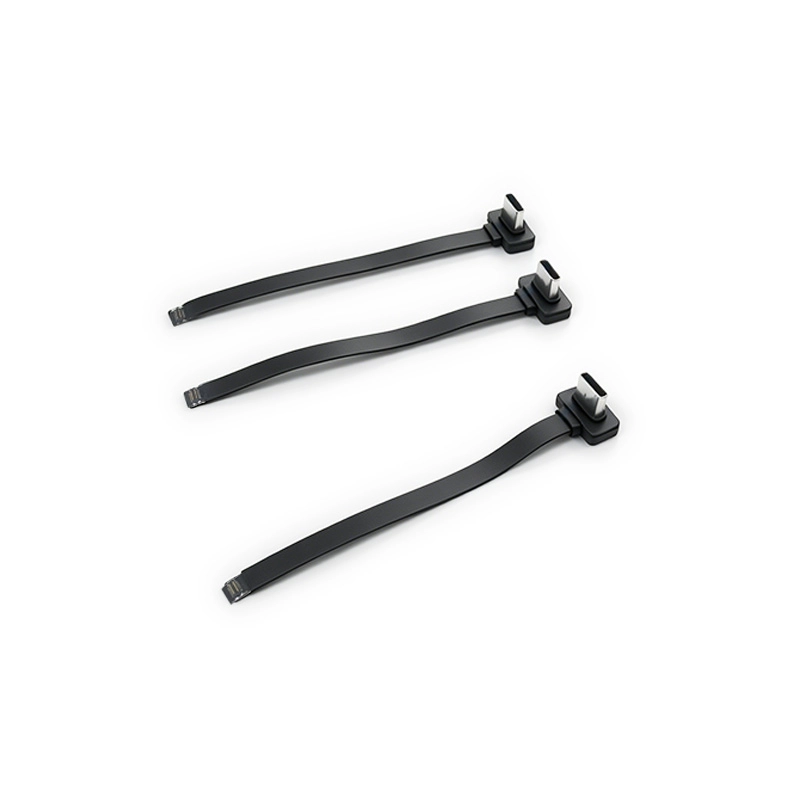

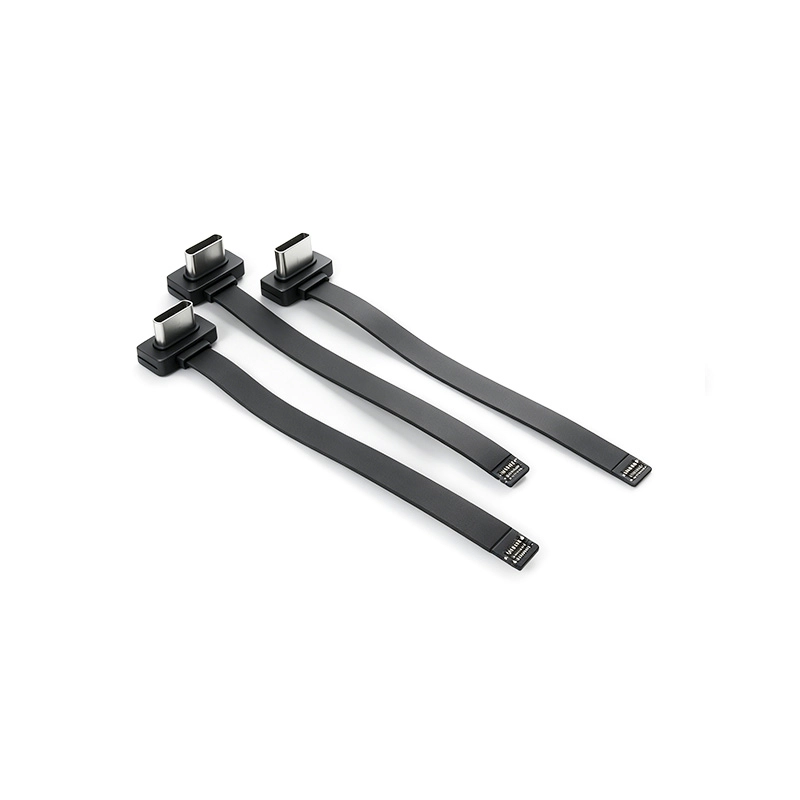

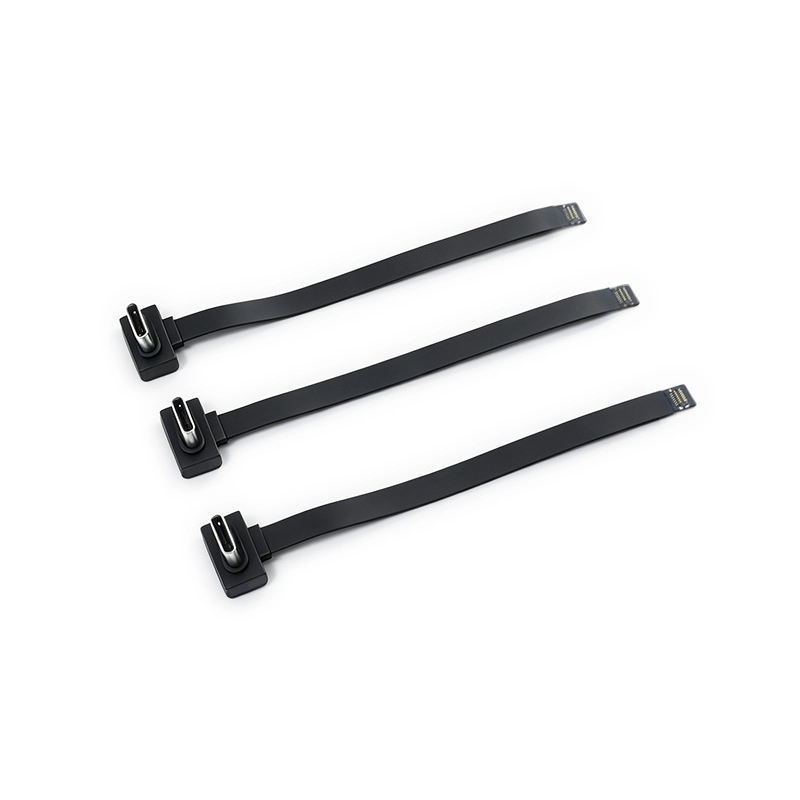

Compact Right Angle USB-C Design

The 90° USB Type-C connector is designed for applications where installation space is limited. Compared with straight connectors, the right-angle design reduces cable bending stress and protects the connector from repeated pulling.

Benefits

• Space-saving installation
• Improved cable routing
• Reduced connector wear
• Better device appearance
• Longer service life

Flexible FPC Cable Structure

Instead of traditional round cable construction, this product adopts a Flexible Printed Circuit (FPC) design.

Advantages include:

• Ultra-thin profile
• Excellent flexibility
• Small bending radius
• Stable high-speed signal transmission
• Lightweight construction

Ideal for:

• Tablets
• Embedded devices
• POS terminals
• Handheld equipment
• Medical electronics
• Smart home devices

Open-End Design for Easy PCB Integration

The open-end configuration allows engineers to directly solder the cable to:

• PCB boards
• Main control boards
• Embedded modules
• Power circuits
• Sensor systems

This significantly reduces connector costs while increasing design flexibility.

Heat Shrink Reinforcement

A professionally applied heat shrink tube strengthens the cable termination area by providing:

• Excellent strain relief
• Improved bending resistance
• Better insulation
• Enhanced durability
• Longer product life

This makes the cable suitable for continuous movement and industrial environments.

Stable USB Performance

Supports reliable USB communication and charging.

Available configurations include:

• USB 2.0 Data + Charging
• Charging Only
• USB Power
• Custom Pin Assignment
• Customized CC Configuration
• Shielded Structure
• High Current Design

Manufacturing Advantages

As a professional custom cable manufacturer, Goochain offers:

• In-house connector mold development
• Cable overmolding production
• FPC cable assembly
• Custom wiring design
• Prototype development
• Mass production
• 100% electrical testing
• OEM & ODM engineering support

Our engineering team works closely with customers from concept design through production, providing rapid development cycles and consistent product quality.

Product Features

• Right Angle USB Type-C Male Connector
• Ultra Flexible FPC Cable
• Open-End Tinned Wire Design
• Heat Shrink Reinforcement
• Compact Installation
• Reliable Data Transmission
• Excellent Strain Relief
• OEM & ODM Available
• RoHS Compliant
• Factory Direct Supply
• Company Introduction

•

  FAQ

  Q1: Can I start a sample order first before ordering more?
  A: Sure, Goochain provide free samples if we have stock, sample customized should be charged some set up cost. We appreciate you to order sample from us to check our quality.


  Q2: What payment methods do you accept?
  A: Alibaba Trade Assurance, PayPal, T/T, Bank Transfer, Western Union and L/C


  Q3: How does your factory do regarding quality control?
  A: Quality is priority. QC department with professional quality assurance specialist attach great importance to quality controlling from the very beginning to the very end. Our factory has gained FDA Registered,Rohs, SGS, CE FCC,ISO9001:2008 ISO13485authentication. Etc


  Q4: Factory? Yes! Can I customize items I like, such as to print our own logo, or to alter the design?
  A: Yes, we are a factory with more than 100 employees. We offer OEM/ODM service. Please contact us or our sales representative to check with the details.


  Q5: Delivery time and warranty? Which shipping service you will use for my goods?
  A: Our lead time is around 2-4 weeks, and we can provide 12 months warranty since delivery. We used DHL,Fedex,UPS,TNT,EMS as customer like.


  Q6: Where is your factory located? How can I visit there?
  A: Sure. We are more than happy to receive you in Dongguan and show you around our workplace.
