ECG electrode lead wires consist of a plug that connects to the instrument, a main cable, a connector, lead wires, and lead wire buttons. The contact DC resistance of the plug, instrument socket, Medical electrode connectors, and ECG electrode connection should not exceed 1.0 ohm. These lead wires are used in conjunction with monitoring devices, ECG machines, and physiotherapy equipment, and are used to transmit electrophysiological signals collected from the surface of the human body.

As a custom-made medical cables manufacturer , we have decades of experience in various cable fields, especially in medical cables, Such as ECG Snap cables, EKG Cable, EMG Cable, EEG Cables and TENS Electrode cables. We not only have relevant medical device management system certification ISO 13485, but also have a professional electrode cables R&D team to continuously develop medical device cables.

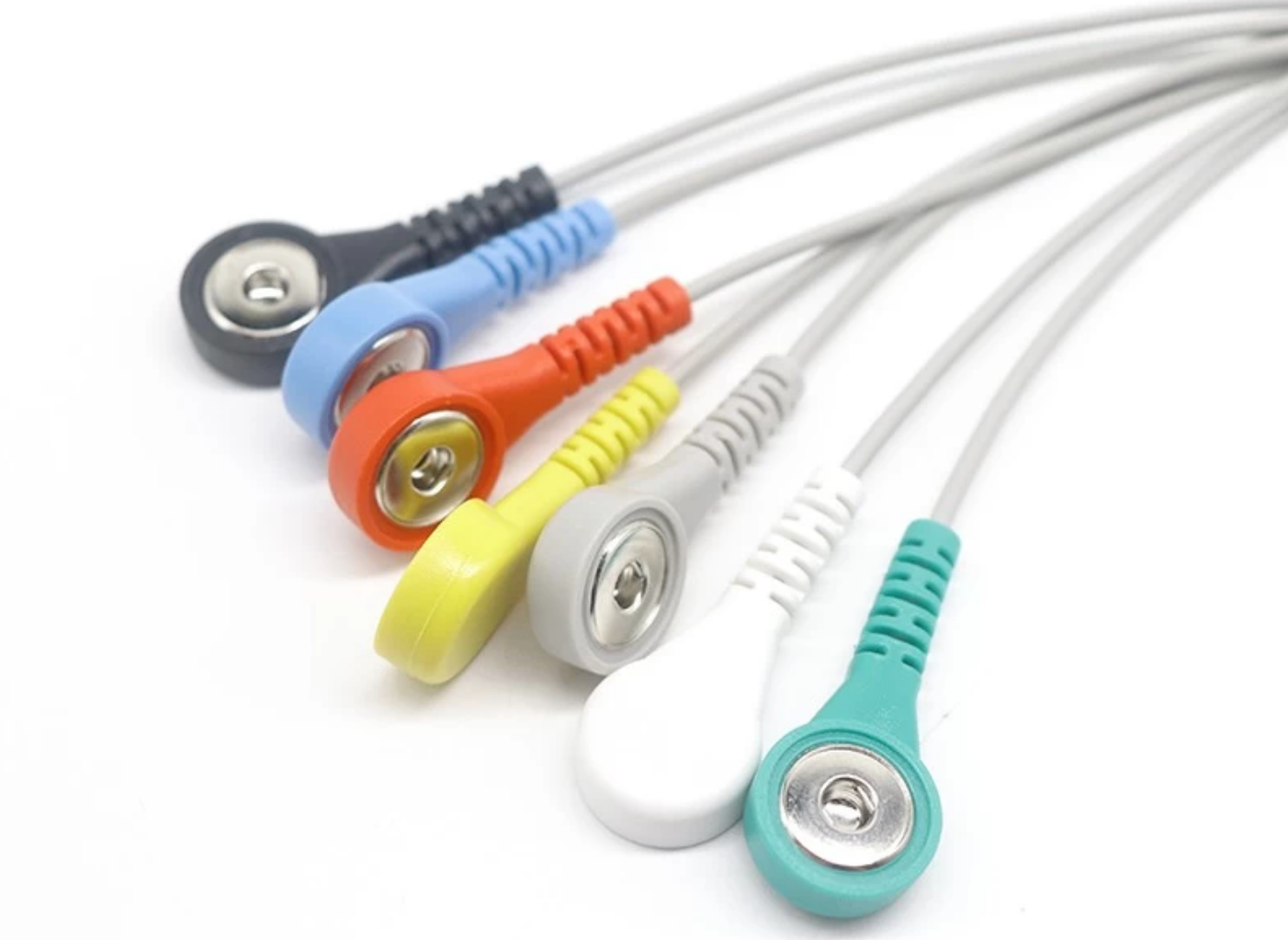

Electrode lead wires can be used with various plugs Such as 2.5mm ecg snap button, 3.5mm ecg snap button, 4.0mm ecg snap button, 5.0mm ecg snaps also safety plug female dc 2.35mm socket, and can be customized in terms of size, color, and number of lead wires based on the equipment used. The ECG electrode lead wires and corresponding products are as follows:

3 lead ECG EEG EKG EMG Female Snap cable with 3.5mm stereo audio jack

Patient monitor 7-lead USB Type C ECG/EKG/EMG Holter Cable Leadwire Cable

4Pin lemo medical cable to 3.9mm 10.0mm ecg eeg ekg emg cable leadwire for silicone electrode pad
